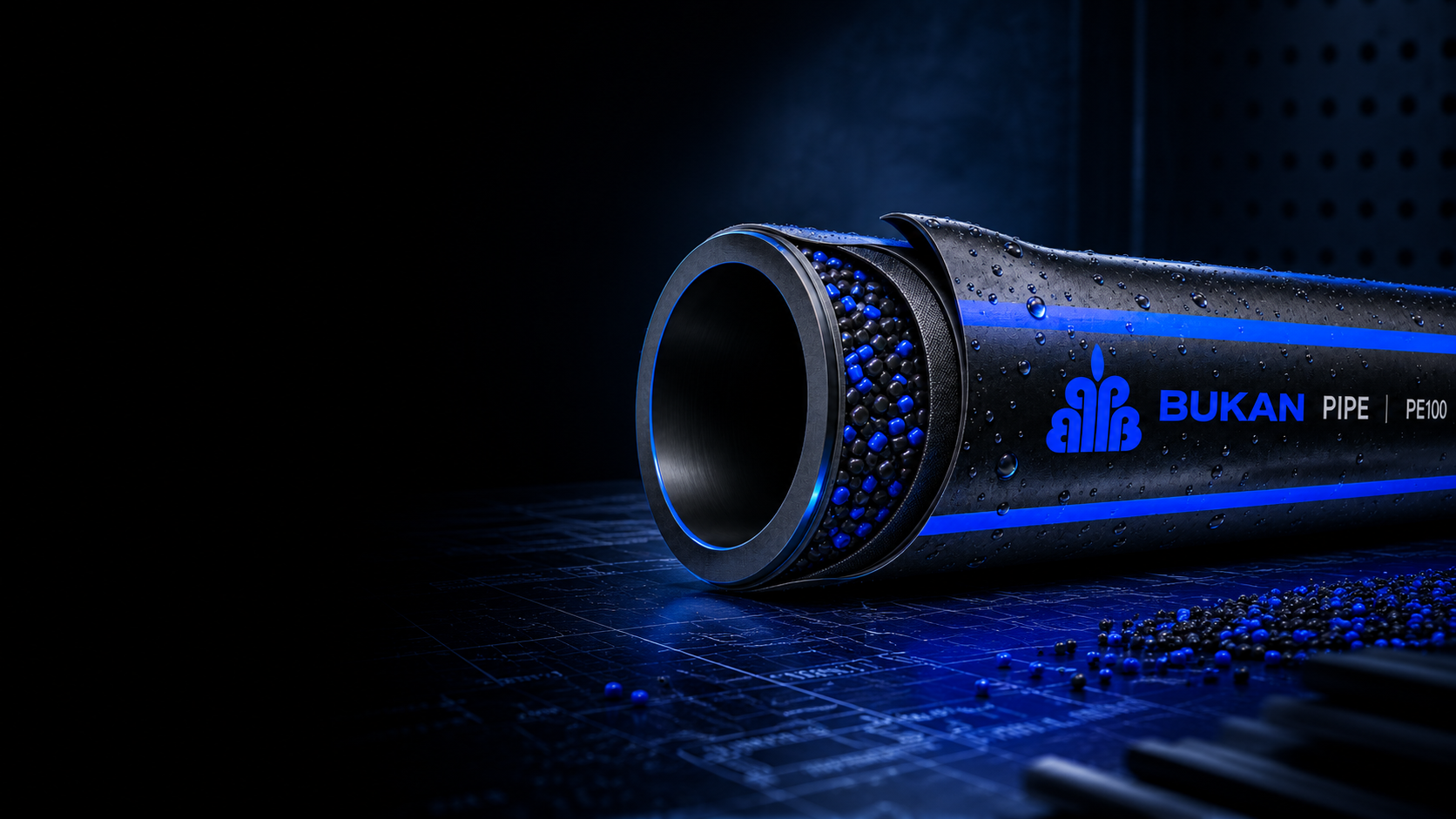

PE100 HDPE Pipes
PE100 polyethylene pipe with higher MRS for higher-pressure or thinner-wall design.
What is it?
PE100 HDPE pipes use polyethylene compound with Minimum Required Strength (MRS) of 10 MPa — allowing higher pressure rating or thinner walls than PE80 at the same SDR.
PE100 is a higher MRS grade than PE80: at the same SDR it allows thinner walls or higher pressure rating. Bukan Pipe produces PE100 HDPE pipes for water, gas and industrial networks where the grade is specified.
Technical specifications
| Pipe type | Single-wall HDPE extrusion |
|---|---|
| Production range | 16 mm to 630 mm, pressure rating 2.5 to 25 bar (depending on grade and SDR) |
| MRS | 10 MPa (PE100 designation) |
| Design benefit | Higher PN or reduced wall thickness vs PE80 at same SDR |
| Typical standards | INSO 14427-2 (water), EN 1555 / INSO 11223 (gas) — project-specific |
| Manufacturer | Bukan Pipe — Bukan, West Azerbaijan, Iran. Manufacturing since 1997. |
Technical advantages
- Higher MRS — smaller diameter or higher pressure in design
- Long-term underground performance in network applications
- Used with INSO 14427-2 for qualifying water supply production
Typical applications
- Higher-pressure water supply segments
- Industrial transfer where PE100 is specified
- Gas distribution where utility specification requires PE100
Catalogue dimensions — sample
Source: official Bukan Pipe catalogue
| Outer diameter DN(mm) | Nominal pressure (PN) bar | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| PE802.5PE1003.2 | PE803.2PE1004 | PE804PE1005 | PE805PE1006 | PE806PE1008 | PE808PE10010 | PE8010PE10012.5 | PE8012.5PE10016 | PE8016PE10020 | PE8020PE10025 | PE8025PE100— | |
| SDR51 | SDR41 | SDR33 | SDR26 | SDR21 | SDR17 | SDR13.6 | SDR11 | SDR9 | SDR7.4 | SDR6 | |
| 110 | 2.2 | 2.7 | 3.4 | 4.2 | 5.3 | 6.6 | 8.1 | 10 | 12.3 | 15.1 | 18.3 |
| 160 | 3.2 | 4 | 4.9 | 6.2 | 7.7 | 9.5 | 11.8 | 14.6 | 17.9 | 21.9 | 26.6 |
| 250 | 4.9 | 6.2 | 7.7 | 9.6 | 11.9 | 14.8 | 18.4 | 22.7 | 27.9 | 34.2 | 41.6 |
| 400 | 7.9 | 9.8 | 12.3 | 15.3 | 19.1 | 23.7 | 29.4 | 36.3 | 44.7 | 54.7 | 66.5 |
| 630 | 12.3 | 15.4 | 19.3 | 24.1 | 30 | 37.4 | 46.3 | 57.2 | — | — | — |
For a project order, confirm the final specification with our sales team. Request a quote
Technical specifications
Contact sales or request a quote for diameter, SDR, PN and weight-per-metre tables matched to your project.
Standards and project compliance
PE100 resists internal pressure; external vacuum or collapse requires air valves, anchoring and line design — see Technical Center.
Quality control
Mechanical and thermal tests per laboratory scope.
FAQ
- Should PE100 always replace PE80?
- Material grade follows the project specification, pressure, temperature and engineer's design — not a universal substitution.
